Guide Cable Drum Roller Fiber Optic Cable Laying Stand Cable Drum Roller Stands

Name: Guide Cable Drum Roller Fiber Optic Cable Laying Stand Cable Drum Roller Stands
Brand: SHENHONG
Price: 1 USD

Wholesale Guide Cable Drum Roller Fiber Optic Cable Laying Stand Cable Drum Roller Stands from china suppliers

Brand Name : SHENHONG

Model Number : HZT1800

Certification : ISO

Place of Origin : Jiangsu,China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs per month

Delivery Time : 7days after payment

Packaging Details : plastic box

Appllicable drum diameter (mm) : Φ500~Φ1800

Maximum weight of drum (kg) : 1500

Dimension (mm) : 650×150×145

Single piece weight (kg) : 40

Application : apply to electric power, communication and relatively industry to lay cable

Warranty : 1 year

Contact Now

Guide Cable Drum Roller Fiber-optic Cable Laying Stand Cable Drum Roller Stands

Description:

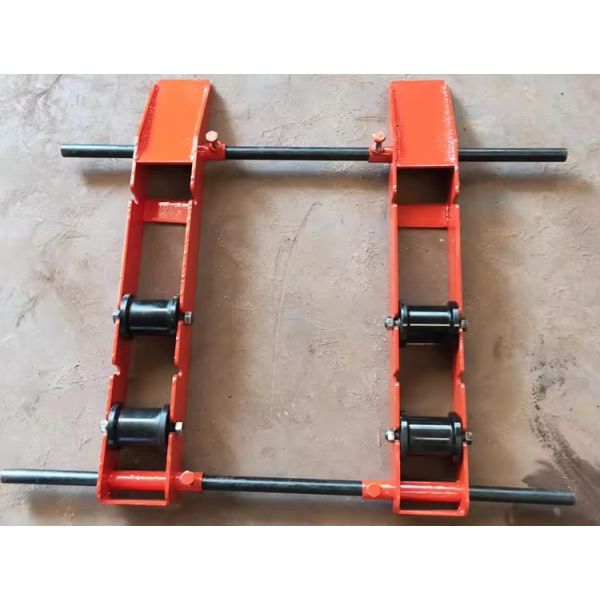

The reel rotator platform can be used as the cable reel spreading device. It can be applied to the cable laying construction in electric power, communication, and other relevant industries. This product is basically composed of the turntable, roller, roller axis, as well as the locking fixture. The roller is internally equipped with rolling bearing. While rotating, the reel is flexible.

Using Method:
1. The two platforms must be well placed on basis of the reel width.

2. The roller close to the slope needs to be locked.

3. The position of roller should be adjusted in accordance with the reel diameter.

4. The reel must be pushed to the platform along the slope.

5. Relieve the locked roller, and then the reel is able to rotate.

Essential technical parameter

Item number	21533	21552	21551
Model	HZT1250	HZT1800	HZT2500
Appllicable drum diameter (mm)	Φ500~Φ1250	Φ500~Φ1800	Φ500~Φ2500
Maximum weight of drum (kg)	500	1500	1500
Dimension (mm)	470×172×105	650×150×145	900×230×130
Single piece weight (kg)	17	40	73.5

Using method :

1. Mounted on two roller base on the drum diameter.

2. Lock the roller on the slope.

3. Adjust roller base on the drum diameter.

4. Slopes the drum rim up the turntable along its slants.

5. Relieve the locking roller, then you can turn the drum.
